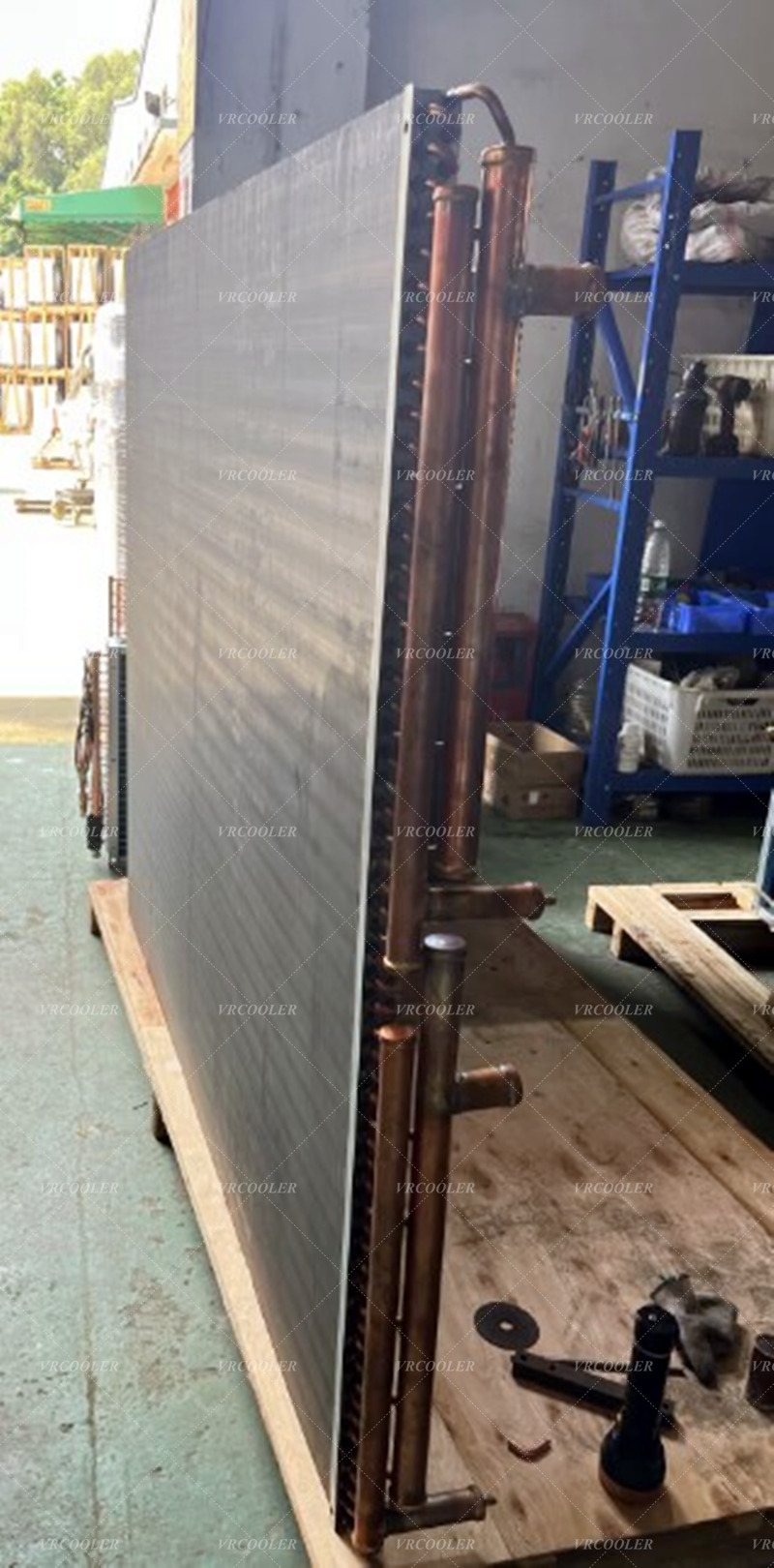

L Type Evaporator for Heat Pump
An L-type evaporator is a specialized design used in heat pumps and refrigeration systems to enhance heat exchange efficiency within a compact space. This design is particularly beneficial for systems where space constraints or specific airflow patterns are considerations. Here's a detailed overview of the L-type evaporator for heat pumps:
Design and Structure
L-Shaped Configuration:
The L-type evaporator consists of two sections arranged perpendicularly, forming an L shape. This design allows for a larger surface area within a confined space.
Typically, one section is placed horizontally and the other vertically, maximizing heat transfer in systems with limited installation space.
Coils and Fins:
The evaporator coils are made of high-conductivity materials like copper or aluminum, often finned to increase surface area and improve heat transfer efficiency.
Fins are closely spaced to enhance the heat exchange process between the refrigerant and the air.
Airflow:
Fans or blowers are strategically positioned to direct air over both sections of the evaporator, ensuring uniform cooling and efficient heat absorption from the air.
Operation
Heat Absorption:
Refrigerant enters the evaporator as a low-pressure, low-temperature liquid. As air flows over the coils, the refrigerant absorbs heat from the air and evaporates.
The L-shaped configuration ensures that the maximum amount of air comes into contact with the evaporator coils, increasing the efficiency of the heat absorption process.
Condensation Management:
As the refrigerant absorbs heat, it changes phase from liquid to gas. Moisture from the air condenses on the cold surface of the evaporator coils and needs to be managed to prevent ice buildup and ensure efficient operation.
Proper drainage systems are incorporated to remove the condensate and prevent water accumulation.
Benefits
Space Efficiency:
The L-type design allows for a large heat exchange surface area in a compact form, making it ideal for applications with space limitations, such as residential heat pumps and compact commercial units.
Improved Heat Transfer:
The increased surface area and optimized airflow patterns enhance the heat transfer efficiency, leading to better performance of the heat pump system.
Versatility:
Suitable for various applications including split air conditioning units, packaged units, and heat pumps used in residential, commercial, and industrial settings.
Applications
Residential Heat Pumps:
Ideal for use in home heating and cooling systems where space for the evaporator unit is limited.
Commonly found in split-system air conditioners and heat pumps.
Commercial HVAC Systems:
Used in small to medium-sized commercial HVAC systems where efficient heat exchange is crucial for maintaining comfort levels in confined spaces.
Refrigeration Systems:
Employed in commercial refrigeration units where maximizing storage space is important without compromising on cooling efficiency.
Design Considerations
Material Selection:
High thermal conductivity materials like copper and aluminum are preferred for the evaporator coils and fins to ensure efficient heat transfer.
Airflow Management:
Fans or blowers must be carefully designed and positioned to ensure even airflow over the entire surface of the evaporator, preventing hot spots and ensuring uniform cooling.
Condensate Drainage:
Effective condensate management systems must be in place to prevent water buildup and potential ice formation on the coils.
Installation and Maintenance:
The design should allow for easy access for maintenance and cleaning, ensuring long-term efficiency and reliability of the heat pump system.
